Smart, scalable & future-proof
Elecq Home & Elecq Biz
Elecq delivers high-tech EV charging stations that combine premium hardware, advanced connectivity and intelligent energy management integration.Request demo
As the official Elecq distributor in Switzerland, Sintio provides expert consulting, technical support and project delivery for energy providers, installers and the real estate sector.
Why choose Elecq charging stations?
-40°C to +55°C
Engineered for extreme conditions. Built to last.
±0.5 %
MID-certified meter with best-in-class accuracy.
OCPP 1.6J & 2.0.1
Native OCPP connectivity – fully independent of manufacturer cloud.
100%
Always online powered by next-level connectivity.
Elecq Charging Solution
Elecq Home
Effortless and cost-effective installation
- Simple installation process thanks to the snap-in mounting system and the easy configuration with the Elecq Partner App.
- Streamlined and cost-effective installation thanks to integrated safety components: built-in overload protection according to IEC 61851-1:2019 and integrated RCD (30 mA AC/6 mA DC) in accordance with IEC 62955.
Next-level connectivity and smooth integration
- Always online: Connectivity via WiFi 2.4 & 5 GHz, Ethernet or SIM card with the 4G version.
- WiFi mesh networking between charging stations, i.e. no external access points required.
- Local EMS integration via Modbus TCP or via the smart charging functionalities of native OCPP 1.6J and 2.0.1.
Smart charging & load management
- Elecq Power Monitor for dynamic load management: works also in offline mode thanks to Wi-SUN communication.
- Power Monitor is gateway and meter in one device; no additional power meter required.
- Digital input for load control of the distribution system operator.
Advanced user experience
- Phone key function: automatic charging start for a seamless 'plug & charge' experience.
- Voice feedback on status changes, e.g. 'Charging started'.
- Voice control via Siri, Alexa and Google Home.

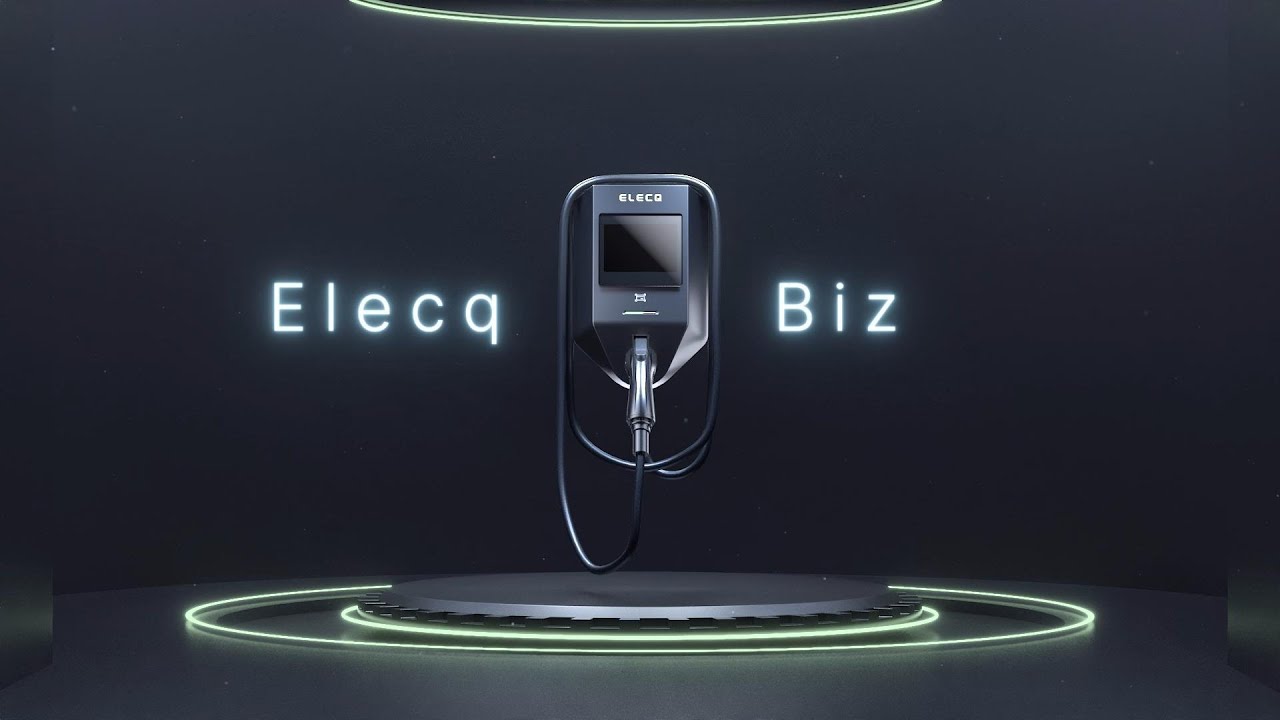

Elecq Biz
Best-in-class accuracy for adequate billing
- Integrated MID-certified energy meter with ±0.5% accuracy.
- Complies with the legal requirements for billing in all scenarios, whether in residential and commercial properties or public charging.
Ultimate user experience
- The large 5" LCD touchscreen with its advanced possibilities for interaction takes the user experience to the next level.
- It can be used for showing real-time pricing information or dynamic QR codes and for branding or promotional purposes.
Smart load management for today and tomorrow
- Full scalability: unlimited number of charging stations per site for large EV charging infrastructures.
- Dynamic load management with intelligent phase balancing.
- Ready for future Vehicle-to-Grid (V2G) and bidirectional AC charging applications: the compliance with ISO 15118-20 and relevant grid codes has been externally tested.
High-tech of the highest quality
- Elecq uses only the very highest quality components.
- This translates into technical characteristics like extreme temperature resilience (operating range -40°C to +55°C), exceptional UV resistance and, thanks to its IP65 protection rating, long-term suitability for outdoor use.
- The 5-year manufacturer's warranty underscores the high quality of Elecq.
Energy management & smart charging integration
Optimize self-consumption, solar integration and load balancing automatically.
Compatible with Clemap, Solar Manager and other EMS platforms
Local control via Modbus TCP and RTU
Backend integration via OCPP
Request more info or a product demo
